CNC Lathe
M08JL5-II M08JL8-II
Feature
・ Realizes machining of large workpieces by extending the X-axis stroke.
Extends machining capacity with 500mm-machining length (M08JL5L-Ⅱ).
・ Great cutting capability realizes high productivity.
・ Minimizes the damage to the machine by abnormal load detection.
・ Safety setting up by interference prevention function
・ Thanks to the thermal displacement compensation, the long-term stable production is realized.
Feature
| Machine tool parameter | M08JL5L-II | M08JL8-II |
| Max.machining dia. | φ350mm/φ65mm（barstock） | φ280mm/φ65mm（barstock） |
| Max. machining length | 500mm | 800mm |
| Spindle chuck size | 8 inch | |
| Main spindle speed | Max.4,000min-1（Rated speed:3,500min-1） | |

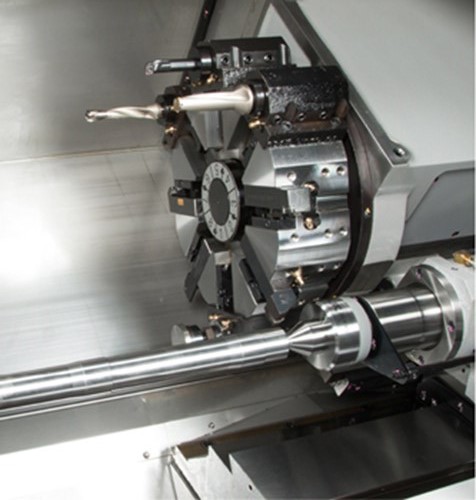

| No. of turret stations | 8 | |
| Rapid traverse rate | X:24m/min Z:27m/min | |
| Main spindle motor | 9/11kW | |
| Width×Depth×Height | 2,376×1,635×1,700mm | 2,511x1,818x1,690mm |
| Weight | 3,520kg | 4,000kg |
・ The above machine parameters are for reference only.
・ For special technical specifications, please contact our sales offices or authorized distributors.
・ To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
