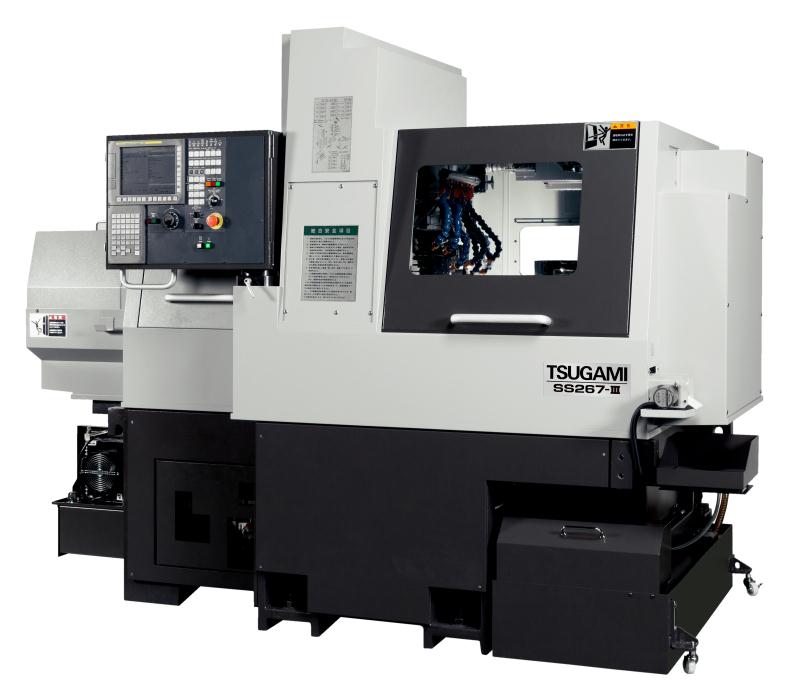

CNC 金年会 Automatic Lathe
SS267-III SS327-III
Feature
・ Thanks to the B-axis control live tool, virtually any angle can be indexed and processed by NC programs
・ Simultaneous 4-axis machining with CAD/CAM
・ Completely simultaneous processings are possible between main and back spindles for complex machining thanks to the Y-axis of back tool post
・ Thanks to the four rotary tools,realizing versatile B-axis processing
Feature
| Machine tool parameter | SS267-III | SS327-III |
| Max. machinable dia. | φ26mm | φ32mm |
| Main spindle speed | 200～10,000min-1 | 200～8,000min-1 |
| Back spindle speed | 200～10,000min-1 | 200～8,000min-1 |
| Total number of tools | 38PCS | |
| Rapid traverse speed | 35m/min(X1,Y1,Y2:24m/min) | |
| Main spindle、Back spindle motor | 3.7/5.5kW | |
| Width×Depth×Height | 2,630×1,280×2,010mm | |
| Weight | 4,000kg | |
For special requirements on technical specifications, please consult with the company's sales branches or legitimate distributors.
