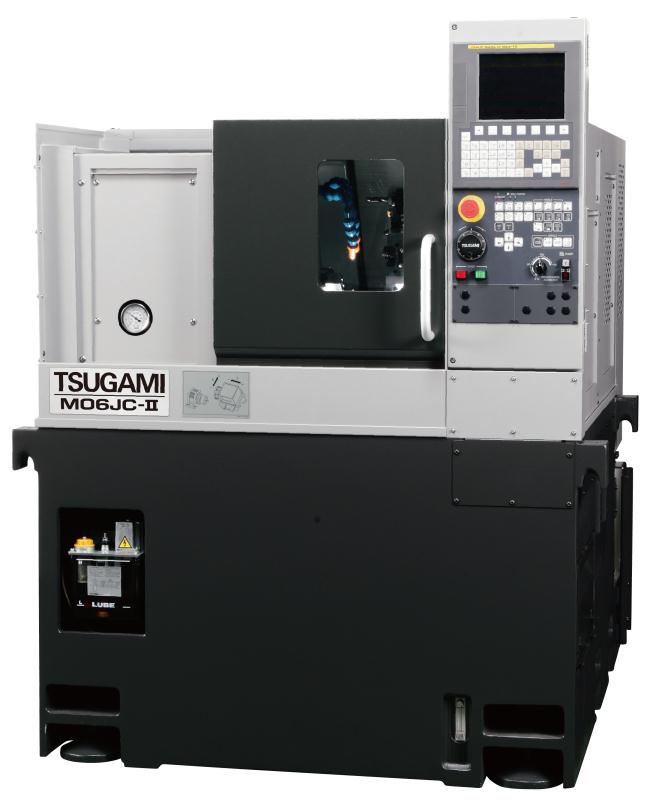

CNC Lathe
M06JC-Ⅱ
Feature
・ Compact machine, width 1,165mm× 1,560mm
・ Overwhelming cost performance
・ On-board conversational programming software, Manual guide 0i is prepared as an option
・ Abnormal load detection function decrease the damage in case of machine crush
・ Safety setting up by the help of interference prevention function at debug mode
・ Accurate machining is realized by the thermal displacement compensation function
Feature
| Machine tool parameter | M06JC-Ⅱ |
| Max. machinable dia. | φ220/φ42(Bar work)mm |
| Main spindle speed | 200～4,500min-1 |
| No. of turret stations | 8-station turret |
| Rapid traverse rate | X,Z:24m/min |
| Main spindle motor | 5.5/7.5kW |
| Width×Depth×Height | 1,165×1,560×1,650mm |
| Weight | 2,380kg |
・ The above machine parameters are for reference only.
・ For special technical specifications, please contact our sales offices or authorized distributors.
・ To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
