金年会 Machinging Centre

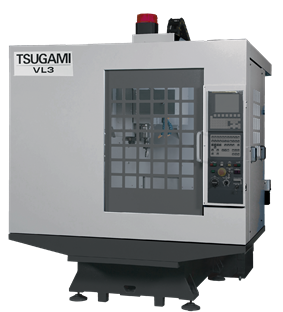

VL3
特征
・ Utilizes large tooling zone for a large workpiece or multiple workpieces processing
・ The spindle is separated from the ATC arm and the tool magazine is fixed to the column top, the position of magazine will not affect the tooling area. Only the spindle moves up and down so that tooling design becomes easy.
・ 20 tools can be stored in the tool magazine as standard.(Maximum mountable tool number: 21 tools)
Feature
| Machine tool parameter | VL3 |
| X/Y/Z axis stroke | 700×450×350mm |
| Table size | 850×450mm |
| Max. load on table | 300kg |
| Main spindle speed | 100～10,000min-1 |
| Main spinlde motor | 13.0/3.7kW |
| Tool shank |
BIG PLUS BBT30 (JIS B 6339-1998 BT30) |
| Width×Depth×Height | 1,900×2,280×2,385mm |
| Weight | 3,200kg |
For special requirements on technical specifications, please consult with the company's sales branches or legitimate distributors.
