CNC Lathe
M06D-II M08D-II M06SD-II M08SD-II
Feature

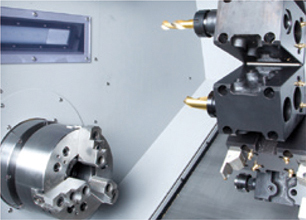

・ Milling tools can be mounted on all the 12-station turret（Option）
・ Side milling, etc. is available besides the basic turning, drilling and boring
・ Preparing the optional interactive programming software on-board "MANUAL GUIDE i"
Feature
| Machine tool parameter | M06D-II | M08D-II | M06SD-II | M08SD-II |
| Max. machinable dia. | φ260/φ51(Bar work)mm | φ280/φ65(Bar work)mm | φ260/φ51(Bar work)mm | φ280/φ65(Bar work)mm |
| Main spindle speed | 200～4,500min-1 | 200～4,500min-1 | ||
| Back spindle speed | — | 200～4,500min-1 | ||
| No. of turret stations | 12-station turret | 12-station turret | ||
| Rapid traverse rate | X:24m/min Z:27m/min | X:24m/min Z:27m/min A:30m/min | ||
| Main spindle motor | 7.5/11kW | 7.5/11kW | ||
| Width×Depth×Height | 2,330×1,850×1,750mm | 2,470×1,850×1,750mm | ||
| Weight | 4,700kg | 5,300kg | ||
For special requirements on technical specifications, please consult with the company's sales branches or legitimate distributors.
