金年会 Machinging Centre
VA4
特征
・ Space saving
・ High-speed and high-efficiency machining
・ Excellent accessibility

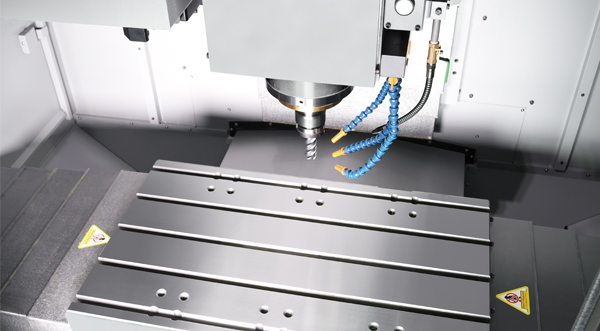

The front guard is close to the spindle center and the table, which increases operation efficiency.
・ Energy saving
Machine without hydraulic unit and power-saving mode reduce unnecessary power/air consumption.
Feature
| Machine tool parameter | VA4 |
| X/Y/Z axis stroke | 720×510×460mm |
| Table size | 850×510mm |
| Max. load on table | 800kg |
| Main speed spindle | 100～10,000min-1 |
| Main spinlde motor | 18.5/11kW(S3 25%/S3 60%/Continuous) |
| Tool shank |
BIG PLUS BBT40 (JIS B 6339-1998 BT40) |
| Width×Depth×Height | 2,320×2,837×2,652mm |
| Weight | 5,000kg |
・ The above machine parameters are for reference only.
・ For special technical specifications, please contact our sales offices or authorized distributors.
・ To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
